DSPIAE Hobby Tool

Orbit Electric Drill Red AT-ED01

The DSPIAE Orbit Electric Hand Drill AT-ED01 is a compact precision tool designed for scale modelling, miniatures, Gunpla, resin parts, 3D prints and delicate hobby work. Unlike traditional high speed rotary tools that can melt plastic or snap small drill bits, the Orbit uses a carefully tuned low speed motor combined with high torque to deliver controlled, accurate drilling. The pen style aluminium body provides excellent balance and control, making it ideal for working on small parts and fine detail tasks.

The drill features a dual mode design that allows you to switch between electric drilling and manual pin vise style operation for extremely delicate work. Forward and reverse rotation adds extra versatility, making it easier to remove stuck drill bits or adjust drilling direction. With a built in rechargeable battery providing up to two hours of runtime, the Orbit is a practical and precise tool for hobbyists working with plastic kits, resin models, wood, PCBs and soft metals.

• Precision electric hand drill for modelling and hobby work

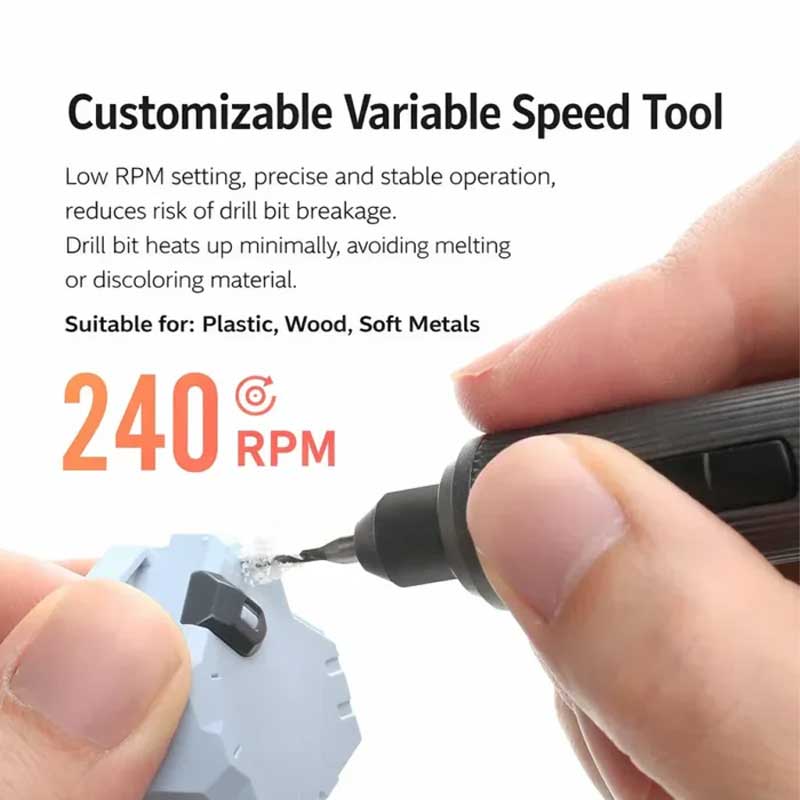

• Low speed 240 RPM motor designed for plastics and resin
• High torque output of 1200 gf·cm
• Concentricity deviation ≤ 0.05 mm for highly accurate drilling
• Supports drill bits with 3.175mm shank
• Electric drilling mode for consistent operation

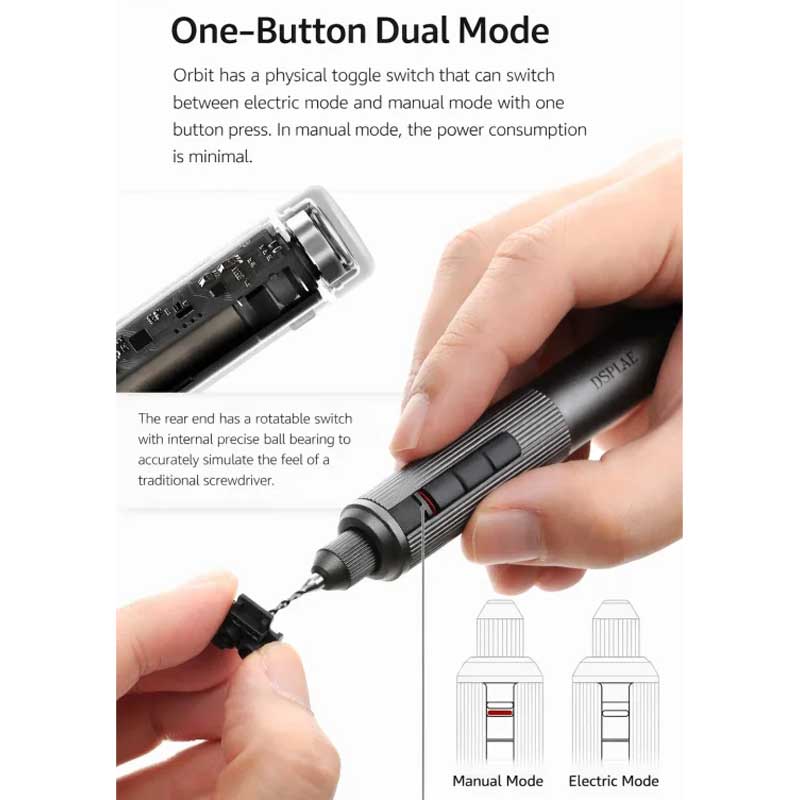

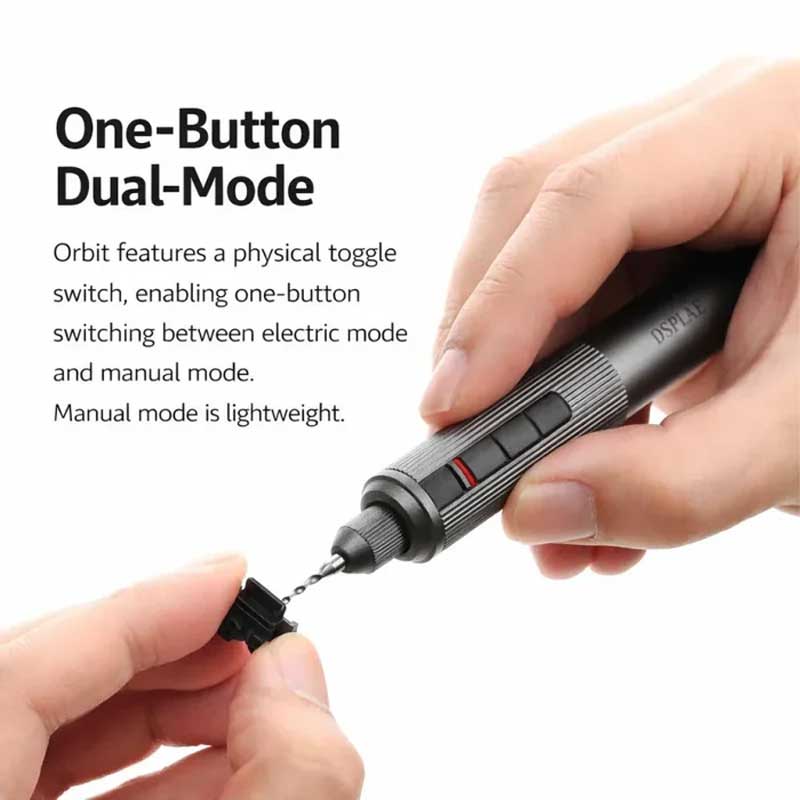

• Manual pin vise mode for delicate control
• Forward and reverse rotation
• Compact aluminium alloy pen style body
• Built in rechargeable battery with up to 120 minutes runtime
• LED indicator with low battery warning

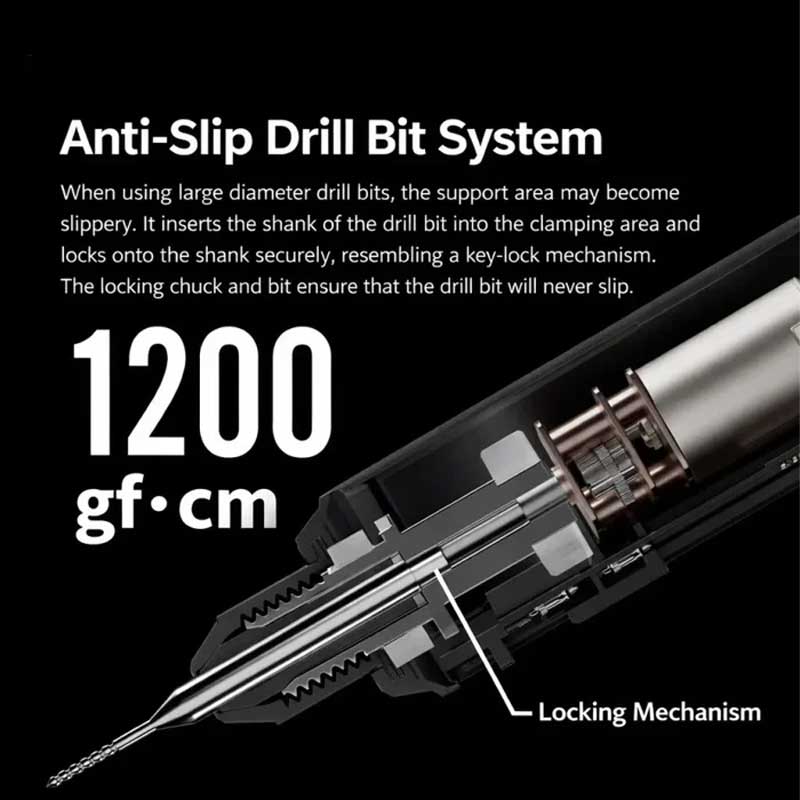

• Compatible with DSPIAE spin lock drill bits
• Slip lock screwdriver adapter set available separately
• Drill bits not included in the basic set

Compatible with the DSPIAE Orbit Drill

The following DSPIAE tools and accessories are compatible with the DSPIAE Orbit Drill:

• DSPIAE Gap Scraper 0.2/1.5mm GS-0215
• DSPIAE Gap Scraper 0.3/0.6mm GS-0306
• DSPIAE Gap Scraper 0.4/0.8mm GS-0408
• DSPIAE Gap Scraper 0.5/1.0mm GS-0510
• DSPIAE Gap Scraper 0.7/1.4mm GS-0714
• DSPIAE Spin-Lock Drill Bit Set 01 (1.0-1.5mm) XDB-S01
• DSPIAE Spin-Lock Drill Bit Set 02 (1.5-2.0mm) XDB-S02
• DSPIAE Spin-Lock Drill Bit Set 03 (2.0-3.1mm) XDB-S03
• DSPIAE Push Broach 0.1mm ZPB-01
• DSPIAE Push Broach 0.125mm ZPB-0125
• DSPIAE Push Broach 0.15mm ZPB-015
• DSPIAE Push Broach 0.2mm ZPB-02
• DSPIAE Push Broach 0.3mm ZPB-03
• DSPIAE Push Broach 0.5mm ZPB-05
• DSPIAE Push Broach 0.8mm ZPB-08
• DSPIAE Push Broach 1.0mm ZPB-10
• DSPIAE Push Broach 1.5mm ZPB-15
• DSPIAE Screwdriver Bits Set SD-S01
